There are 7 technical faults hidden in this pack.
It looks detailed. It looks professional. How many would you catch before the factory has to ask?
Men's Performance Commuter Trouser — NF-M041

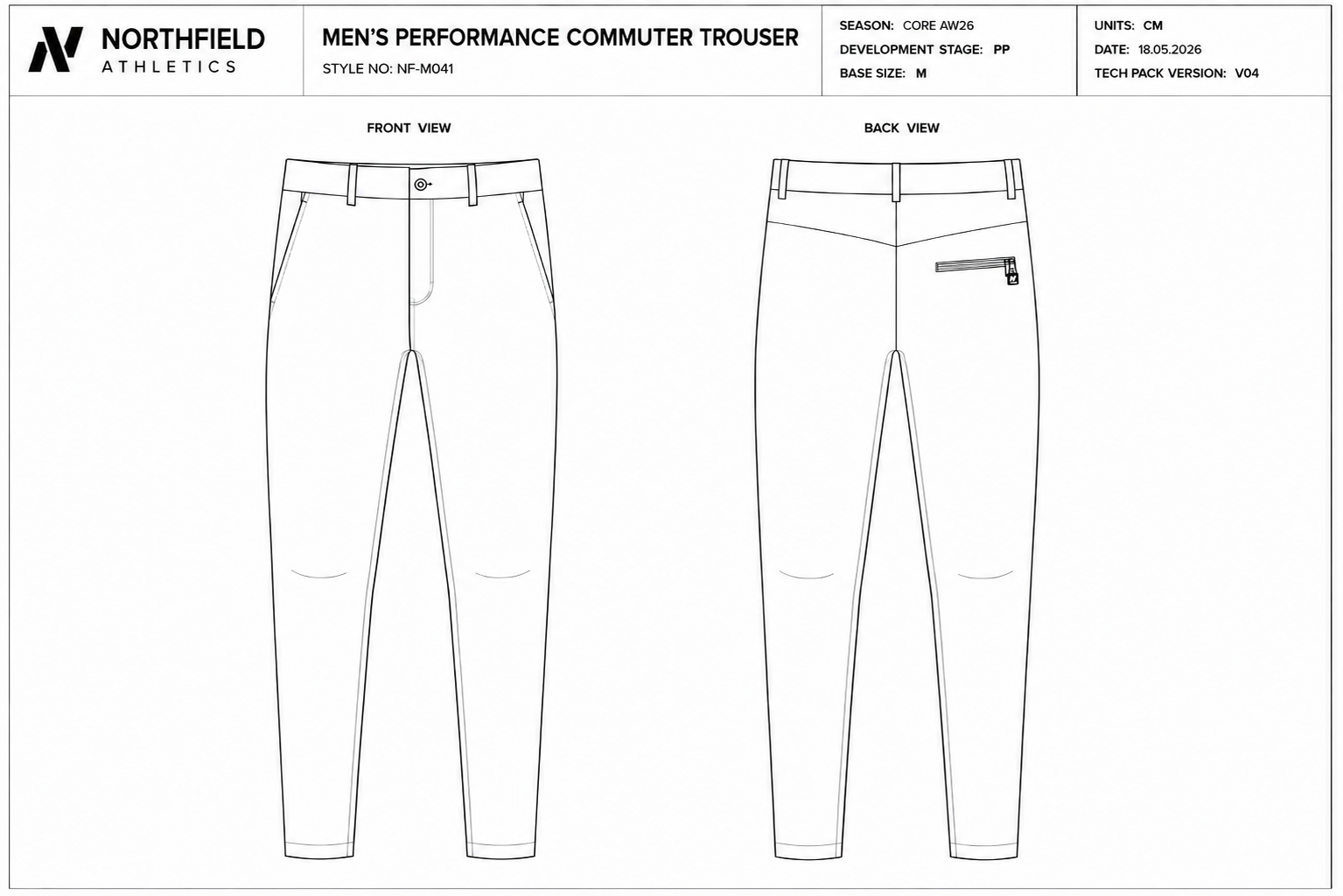

Study the fictional technical pack below as if it had landed on your desk for production. The front and back garment flats are the approved Clinic challenge artwork.
There are exactly seven deliberate faults. Everything else has been reconciled.
Fabrication & Components
Measurement Specification — cm unless stated
| POM | Description | XS | S | M | L | XL | XXL | Tol. | Grade rule |
|---|---|---|---|---|---|---|---|---|---|
| P01 | ½ Waist at top edge | 38.0 | 40.5 | 43.0 | 45.5 | 48.5 | 51.5 | ±0.5 | +2.5 / +2.5 / +3 / +3 / +3 |
| P02 | Waistband finished depth | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | ±0.2 | — |
| P03 | Back Rise incl. waistband | 36.5 | 37.5 | 38.5 | 39.5 | 40.5 | 41.5 | ±0.7 | +1.0 each size |
| P04 | Thigh 2.5cm below crotch | 30.0 | 31.5 | 33.0 | 34.5 | 36.0 | 37.5 | ±0.7 | +1.5 flat each size |
| P05 | Knee width | 19.0 | 20.0 | 21.0 | 22.0 | 23.0 | 24.0 | ±0.5 | +1.0 flat each size |
| P06 | ½ Hem opening | 16.0 | 17.0 | 18.0 | 19.0 | 20.0 | 21.0 | ±0.5 | +1.0 flat each size |
| P07S | Inside Leg — Short | 29" — all sizes | ±0.5" | Fixed by length | |||||
| P07R | Inside Leg — Regular | 31" — all sizes | ±0.5" | Fixed by length | |||||
| P07L | Inside Leg — Long | 33" — all sizes | ±0.5" | Fixed by length | |||||
| P08 | Outside Leg incl. waistband — Regular length | 102.5 | 103.5 | 104.5 | 105.5 | 106.5 | 107.5 | ±1.0 | +1.0 each size |
| P09 | Knee position from crotch | 33.5 | 34.0 | 34.5 | 35.0 | 35.5 | 36.0 | ±1.0 | +0.5 each size |
| P10 | Front pocket opening | 15.5 | 16.0 | 16.5 | 17.0 | 17.5 | 18.0 | ±0.5 | +0.5 each size |
| P11 | Back zip pocket opening width | 14.5 | 14.5 | 14.5 | 14.5 | 14.5 | 14.5 | ±0.3 | — |
| P12 | Fly length | 13.5 | 14.0 | 14.5 | 15.0 | 15.5 | 16.0 | ±0.3 | +0.5 each size |
| P13 | Belt loop finished width | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | ±0.1 | — |
| P14 | Belt loop finished length | 5.2 | 5.2 | 5.2 | 5.2 | 5.2 | 5.2 | ±0.2 | — |
| P15 | Back yoke depth at side seam | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | ±0.2 | — |
| P16 | Back yoke depth at centre back | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | ±0.2 | — |
Length options: Short 29" · Regular 31" · Long 33". Inside Leg is fixed by length rather than graded by size. P08 Outside Leg is shown for Regular length and grades by size; Short and Long follow the corresponding −2" / +2" length adjustment. Measurements are finished-garment measurements taken laid flat and relaxed unless otherwise stated.
Construction Notes
- Shaped waistband, self-faced, finished depth 4cm.
- Fuse outer waistband using approved stretch fusible.
- Waistband to be clean finished internally.
- Back yoke: 4cm depth at side seam; 6cm depth at centre back.
- Five belt loops positioned as technical sketch.
- Centre-front mock fly construction, secure internally with bartack at base.
- Fly edge single-needle topstitch 3cm from CF as approved sample.
- Slant front pocket openings reinforced with fusible tape.
- Pocket bags in polyester stretch mesh.
- Bartack top and bottom of front pocket opening.
- Visible zipped back pocket to wearer's right; zip coil and puller visible on face.
- Back zip pocket opening width to follow P11. Zip tape to sit flat with no puckering.
- Seat seam reinforced; maintain full fabric stretch across seam.
- Side seam 4-thread overlock, pressed to back.
- Inside-leg seam 4-thread overlock, reinforced through upper 20cm.
- Turn hem 3cm, clean finish; single-needle stitch 2.5cm from finished edge.
Care, Labelling & Approval
Sample & Master References
| Stage | Reference | Status |
|---|---|---|
| Proto 1 | NF-M041-P1 | Comments issued |
| Fit Sample 1 | NF-M041-F1 | Comments issued |
| SMS | NF-M041-SMS-V3 | Fit approved |
| PP Sample | NF-M041-PP-V2 | Approved for bulk |
FIT & SHAPE MASTER: Follow SMS V3 approved fit sample.
BULK MASTER REFERENCE: Follow PP V2 approved production sample.
Performance / Testing
- Colourfastness to washing: minimum Grade 4.
- Colourfastness to rubbing: minimum Grade 4 dry / Grade 3–4 wet.
- Dimensional stability: within agreed commercial tolerance.
- Stretch / recovery: meet approved main-fabric standard.
- DWR performance: to approved supplier test standard.
Demonstration only. This is a fictional garment and technical pack created specifically for The Garment Tech Clinic. It is not a customer's design or confidential information.
How many did you find?
1 — Hip / seat POM missing
The chart is detailed, but no measurement directly controls the hip/seat.
What it could mean: the seat silhouette can be wrong while waist, thigh and rise are all within tolerance.
2 — Front rise missing
Back rise is specified; front rise is absent.
What it could mean: crotch balance, comfort, waistband position and front fit are left partly to interpretation.
3 — Functional fly vs mock-fly instruction
The technical flat and BOM specify a fly zip, but the construction instruction says “mock fly construction”.
What it could mean: the factory has two legitimate but incompatible instructions.
4 — Two different master samples
Fit and shape are controlled by SMS V3 while bulk is controlled by PP V2.
What it could mean: an amendment present in only one approved sample can disappear into bulk.
5 — Care instructions conflict
The garment-care block says “Tumble dry low”; the care-label artwork says “DO NOT TUMBLE DRY”.
What it could mean: a one-line contradiction can end up permanently sewn into every garment.
6 — Component compatibility not controlled
Main-fabric testing is specified, but there is no garment-level approval confirming shell, mesh, fusible and zips work together after laundering.
What it could mean: differential shrinkage, puckering, stretch restriction or fusible failure may appear only after assembly.
7 — Waist grade rule does not match the size values
P01 actually grades +2.5 / +2.5 / +2.5 / +3 / +3, but the written rule says +2.5 / +2.5 / +3 / +3 / +3.
What it could mean: a grader following the rule rather than the values can create a different size set.
Imagine this pack is 35 pages long.
Four colourways. Six sizes. Three sample revisions. A production order waiting.
That is why the Clinic exists.
AI-assisted analysis. Human technical judgement.
